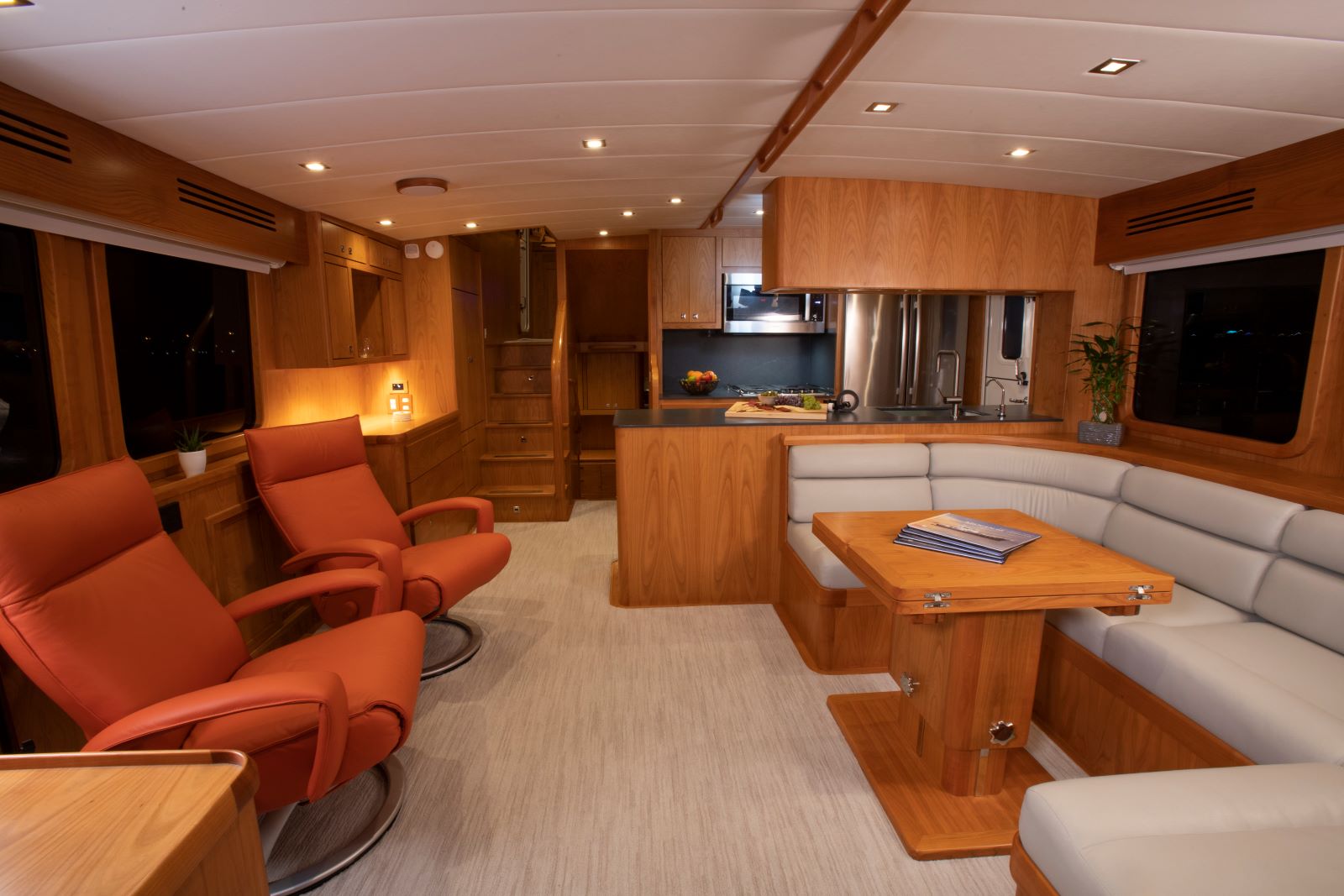

The roomy saloon is entered from the large covered teak aft deck through two welded aluminum weathertight doors with glass windows complete with retractable screen door.  To starboard is a comfortable U-shaped settee with storage below and a table with a cherry hi-lo table.  The table can be used either as a coffee table or large dining table seating up to 8 people. To port there are two comfortable Lafer leather chairs.  Forward of this area is a book case/bar area. There are 5 large windows with custom shades and valences that keep the room bright.

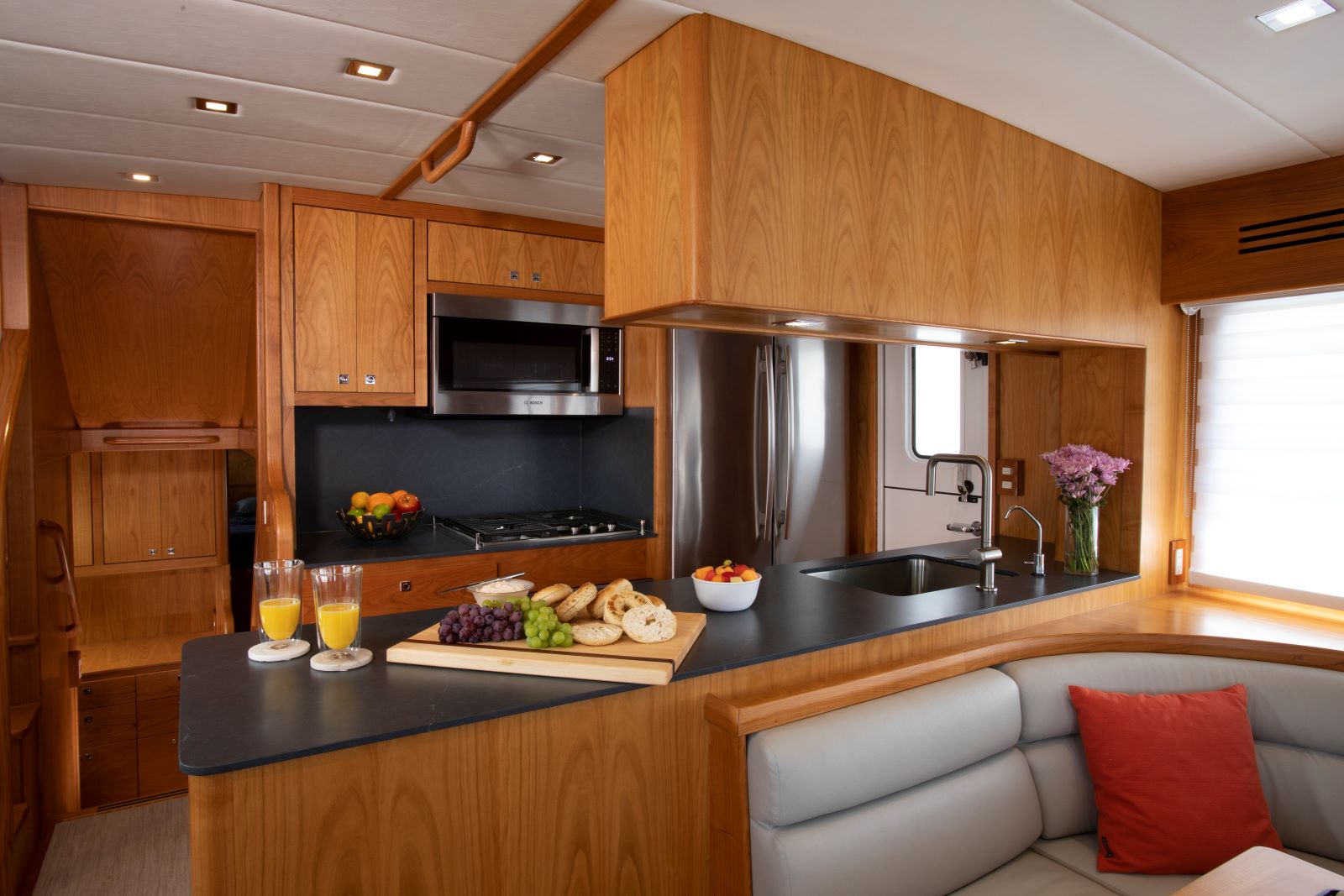

The galley is forward on the starboard side of the saloon and is open to the saloon but separated by a custom Corian counter and backsplash.  There is additional access to the galley from the outside covered side deck through a welded aluminum Dutch door to make provisioning a breeze.  A cherry and ash floor keep the galley bright and give it a warm feel.

Major components in the galley include:

• Jenn-Air® 22cu ft French door refrigerator w/ drawer freezer and ice maker
• Bosch® microwave/convection oven
• Wolf 4 burner stove with Corian back splash
• Miele Oven
• GE® Profile Dishwasher
• Elkay® Stainless steel double basin galley sink with Grohe® faucet
• Sea Gull filtration with separate faucet at sink
• Slide out double trash bin for recycling convenience
• Pantry with custom pull out drawers for easy access to storage

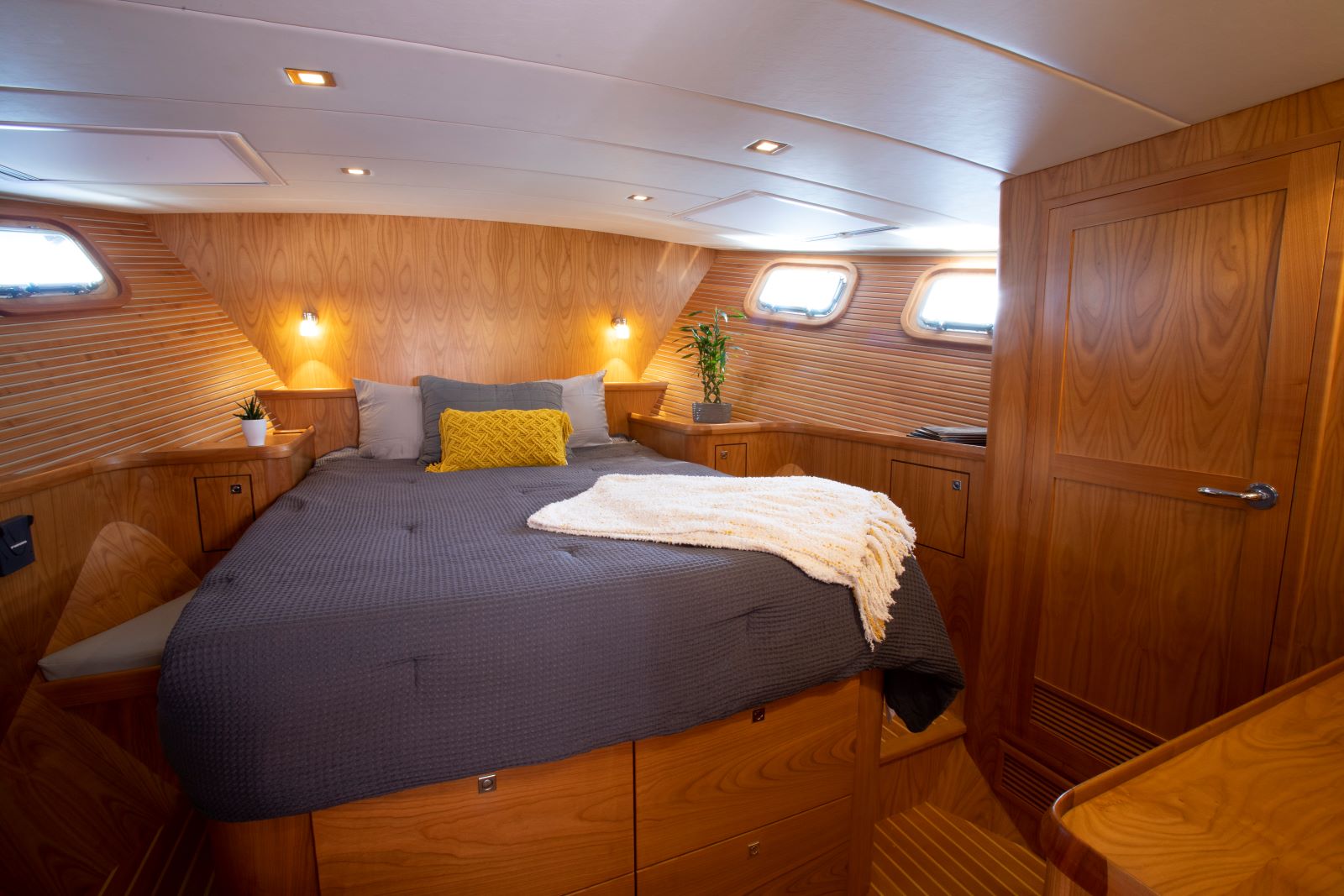

The master stateroom is forward to take full advantage of the full width of the yacht.  There are 4 large stainless steel opening ports and 2 overhead hatches with Oceanair Skyscreen and shades that make the room feel large, bright and airy.  There are multiple large drawers for storage under the queen island berth as well as additional storage accessed via a pneumatic lift for the bed mattress. There is one large hanging locker and one large closet as well as a 8 drawer dresser with custom LED lighting.

The ensuite head is on the aft port side of the master stateroom. There is a stall shower with glass door and molded seat, 2 mirrored medicine cabinets, Corian topped vanity and back splash and Grohe fixtures, household size Dometic porcelain freshwater toilet and linen storage. There are two large opening stainless steel ports above the vanity and in the shower for plenty of light and ventilation.

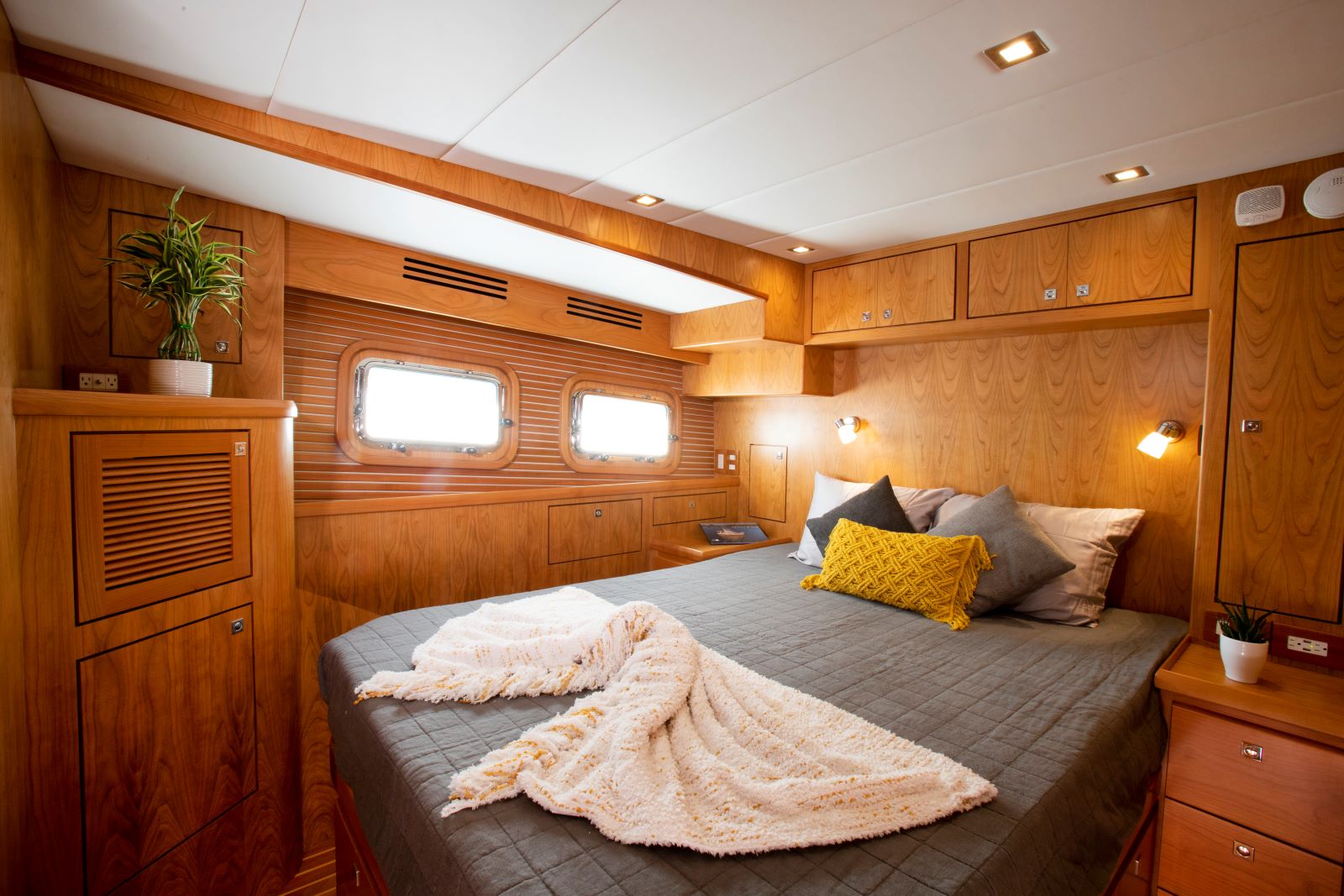

The guest stateroom is to starboard and aft of the master.  It features an island Queen bed with abundant  large drawer storage under as well as a huge compartment under the bed accessed by a pneumatic lifted mattress.  A hanging locker provides additional storage.  There are two oversized opening portholes to provide light and ventilation.

The Guest Head is located forward of the guest stateroom and is an ensuite head.  The head features a separate shower stall with glass door and molded seat and a Corian topped counter. There is a stainless steel opening port in the shower stall for natural light and ventilation.  There are numerous storage spaces.

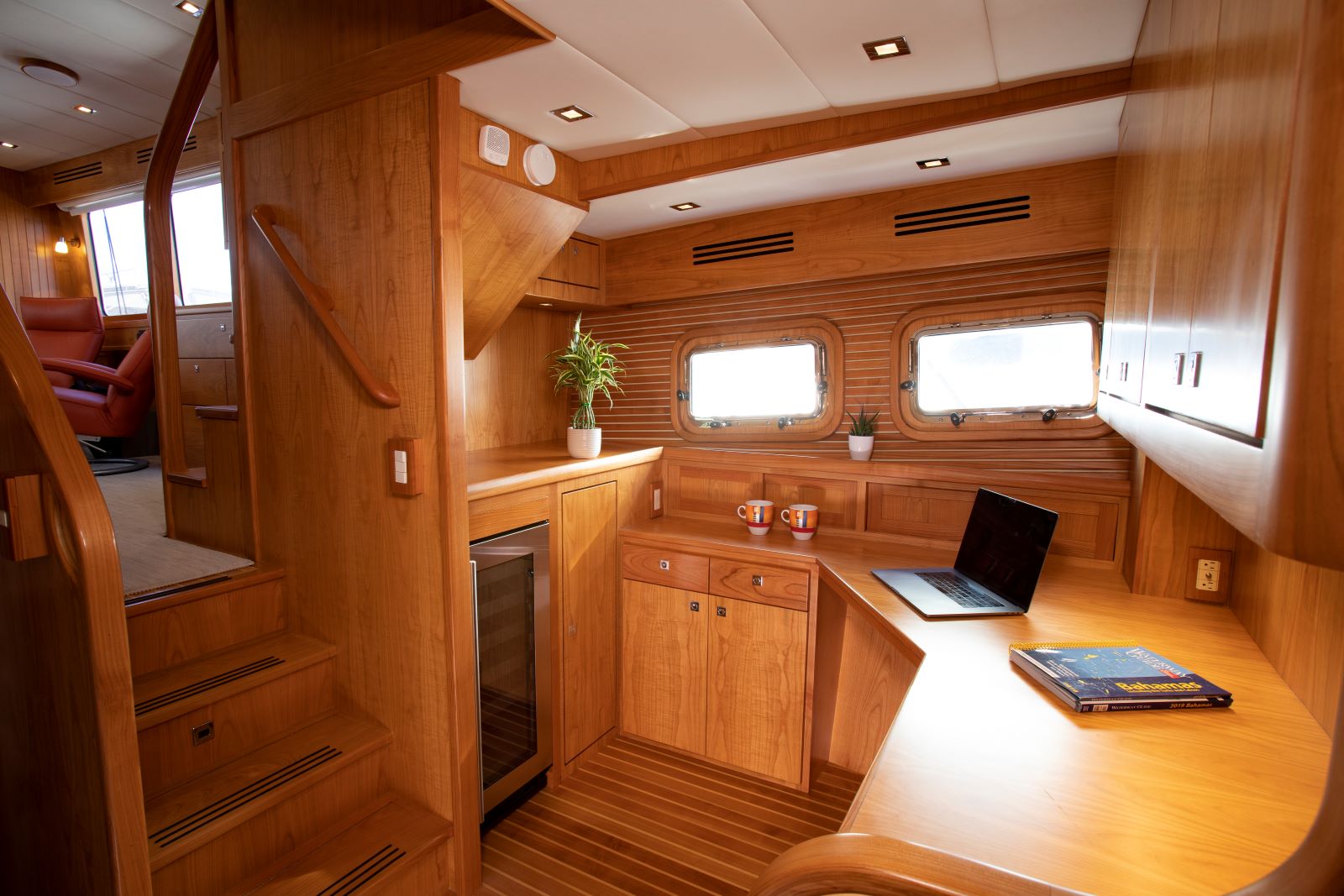

The Open Office is located on the port side forward and down from the galley and saloon.  It features a large desk with numerous drawers.  There is also a 18 bottle wine refrigerator in the aft counter.  There are two large stainless steel ports with that keep the area bright and airy and with the LED lights overhead provide just the right about of light.  Forward of the Open Office in the hallway behind vented cherry doors are a GE stack washer/dryer unit.

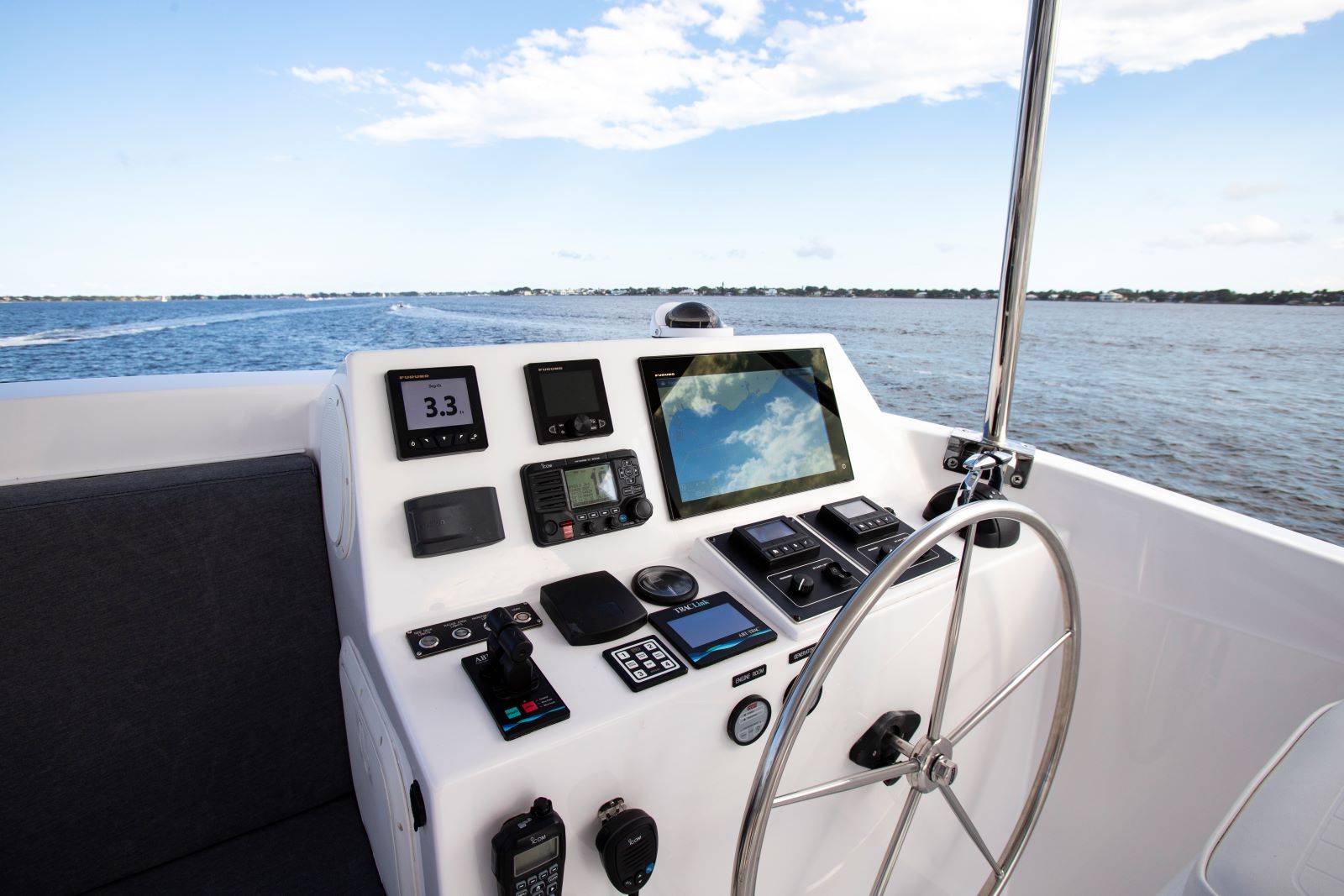

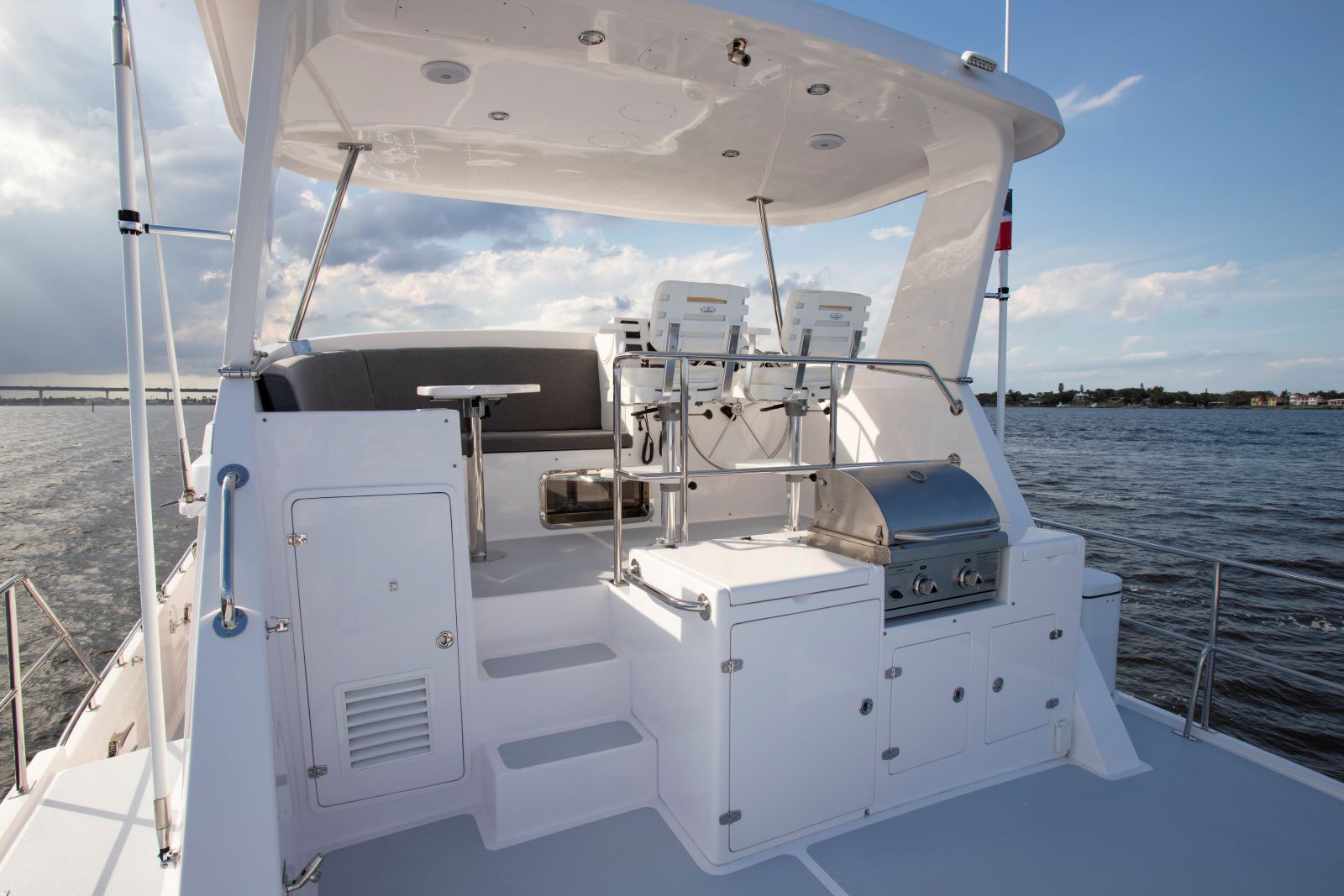

The fly bridge is equipped with dual Pompanette helm chairs and a fiberglass table.  The settee has custom Sunbrella cushions.  Behind the helm area on the flybridge is the summer kitchen equipped with a SeaStar propane BBQ, freshwater spigot and stainless sink w/ hot and cold water & storage lockers.

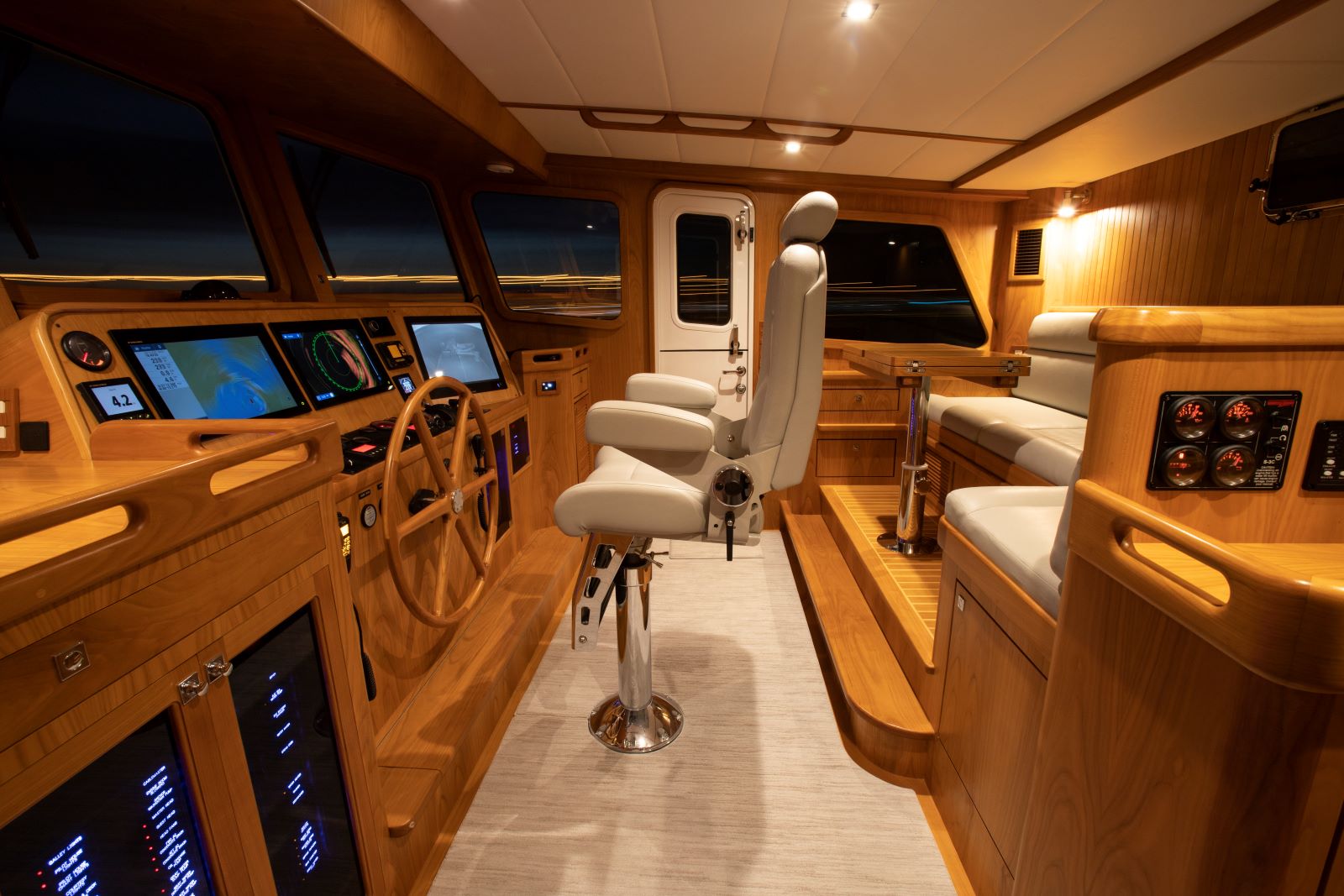

The pilothouse is up a few steps from the saloon and galley and is truly the center of activity when underway.  A Stidd high backed helm chair keeps the captain comfortable underway.  An Ultraleather L-shaped settee is behind the helm.  With it’s mounted folding pedestal table it is the perfect place for a relaxing dinner or even for a second office space.  This settee also converts to a double watch berth if needed.  There is a custom fit carpet in this area as well to protect the floor while providing a nice look to the pilothouse.  Welded aluminum Dutch doors port and starboard allow for easy access to all decks. The pilothouse offers great ventilation via an extra large stainless steel opening port looking aft.  Stepping out of the port side pilothouse door leads to either boat deck/flybridge area or to the Portuguese bridge deck.  There are ship’s control stations with fiberglass covers on both port and starboard corners of the Portuguese bridge making docking in any location easy.

(2) Furuno TZT19F NavNet TZT- 3 19″ Color Touch-Screen Navigation Display

16″ Hi-Resolution, Sunlight readable, Bonded, LCD Waterproof Display

CHIRP or Analog SOUNDER: 40kHz to 225kHz CHIRP or 600W-1kW 50/200 kHz with “Rez-Boost”

Internal Hi-Precision GPS / WAAS Receiver

Internal Wi-Fi Communication Link to iPAD’s and SMART PHONES for Control

Micro-SD Chip Reader with 2 Slots, (2.4″ W x 2.4″ H x 2.5″ D)

GP330B WAAS / GPS Antenna with NMEA 2K Feed Into Nav-Net System

Navionics full U.S. East coast and Bahamas navigation package

HUB-101, Furuno Nav-Net 3D Networking Hub, 8 Port

Furuno 4′ Open array radar, 72 Mile, “DOPPLER-Featured ” Radar with Target Analyzer

Bronze Transducer, Depth, Speed & Temp., 600W

Furuno FA-50 Black-Box CLASS-B Send & Receive AIS System

12 Ch. GPS Receiver with External Antenna

COMROD AV60-BI, 8 Ft. 6dB VHF & AIS Antenna, White, Stainless Ferrule

Furuno BBWX-4 SIRIUS Marine Weather & Music Receiver

Black-Box Weather Receiver to Display NEXRAD Color Weather Radar On Charts

Sirius SRA-50 Satellite Weather Antenna

Line-Level Audio Distribution Amplifier for PILOTHOUSE & SALON FUSION Stereos

Furuno NavPilot 711C Hydraulic Autopilot with COLOR Display, ,Self-Learning / Adaptive

PG-700R Electronic Rate-Gyro Compass- Into ALL Nav. Systems for HEADING DATA

HRP-35 Heavy-Duty Autopilot Pump, Adjustable Flow, 24 VOLTS DC

Furuno 711A NavPilot 711 COLOR Second Station Control Head, (4.5″ x 4.5″)

ICOM M-506-31 DSC Marine VHF Radio / Hailer

Newmar Waterproof Marine Hailer Horn, 40 Watt Max.

HM-195 Mk-IV Full Function Command, Black, FROM FLYBRIDGE VHF #2

COMROD AV90-BI-BNC 16 Ft. 9dB Swivel Base VHF Antenna

ICOM M-506-31 DSC Marine VHF Radio / Hailer – REAR MIC. Version – VHF #2

HM-195 Mk-IV Full Function Command, Black, FROM PILOTHOUSE VHF #1

COMROD AV90-BI-BNC 16 Ft. 9dB Swivel Base VHF Antenna

(2) Furuno FI-70 COLOR Instrument, Multi-Function Information / Data Display in Pilothouse

(2) Furuno FI-70 COLOR Instrument, Multi-Function Information / Data Display on Flybridge

N-2K Bronze Depth, Speed, Temp. “Smart ‘Ducer”

220-WX: Furuno NMEA-2000 Ultrasonic “WIND & Weather Station” with GPS

Thales “VessseLINK CERTUS ” Fixed-Mount DATA & Voice Terminal, GLOBAL Voice & DATA

PepLink Balance 30 LTE PRO Hi-Performance Cellular Router and WAN Select-Switch Accepts TWO SIM Cards for Service Switching Open to T-MOBILE , VERIZON or AT&T , SPRINT Services

Cellular Omni-Directional 695-3000MHz “Bullet Antenna”, White, 4-9db Gain

Aigean LD-7000ac, DUAL-BAND “Marina to Yacht” WI-FI Amplifier, Up To 1000 Milli-Watt TX

7″ Dia. X 5.8″ Tall Transmit & Receive “Flattened-Dome” Antenna

(2) AC-HD Enterprise Class Hi-Powered Wireless Access Point (WAP) with Mesh Operation, HIDDEN

Small Power Supply (UPS ) for Surge Protection and Electricity Reserve

IRIS-090 Stainless Steel Cylinder Camera, Wide-Angle, IR-Illuminated

(3) IRIS-S066 Polished Stainless-Steel Ball Camera with IR-Illum. for DAY-NIGHT use

IRIS-604 / 4-Channel Camera Selector Switch & QUAD-Page with Console Keypad

IRIS-540 – Camera Selector Keypad for Remote Station, Waterproof Membrane

IRIS NTSC Video Distribution Splitter / Amp – To ALL FURUNO DISPLAYS

Shakespeare “Sea Watch” 3019 Omni-Directional Over-Air Digital TV Antenna, 19″ Dia.

PILOTHOUSE Television Tuner Box for Over-Air Broadcast into 19″ HELM SCREEN

Saloon:

Samsung 49″ Q7 Series – 2160p 4K / HDTV Smart-TV

FUSION Apollo RA-770 AM/FM – BlueTooth – Streaming Marine Stereo, 4.3″ Color-Touch Most BlueTooth & Internet / WI-FI Streaming Features in Fusion Line

Sony UBPX700 4K BLUE-RAY / DVD Player

Infra-Red Repeater System with Power Supply, Target and Flashers for Remote Control

2 Fusion FM-F77 7.7″ Ceiling Speakers, 200 Watt Max., 2-Way – ZONE 1

2 Fusion FR-4021 Waterproof Marine Speakers, 5-3/8″ Outside Dia., Round – ZONE 2

Pilothouse Audio:

FUSION Apollo RA-770 AM/FM – BlueTooth – Streaming Marine Stereo, 4.3″ Color-Touch

FusionLink Control via Internal Wi-Fi to Phone

SIRIUS MUSIC

2 Fusion FR-4021 Waterproof Marine Speakers

Flybridge:

Furuno TZT16F NavNet TZT- 3 16″ Color Touch-Screen Navigation Display

Internal Hi-Precision GPS / WAAS Receiver

Internal Wi-Fi Communication Link to iPAD’s and SMART PHONES for Control

Fusion NRX-300i Remote Control Pad with LCD Display

2 Fusion FR-6022 Waterproof Marine Speakers

• Twin Tier III John Deere 4045TFM85 125 hp with ZF Marine 2.917:1 ratio gear (149 hours)
• Northern Lights® 12KW generator with sound shield (81 hours)
• Northern Lights® generator water exhaust separator
• ABT Hydraulic stabilizers
• ABT® 25hp hydraulic bow thruster- proportional controls at all 4 stations
• ABT® 15hp hydraulic stern thruster- proportional controls at all 4 stations
• Reverso® oil change system plumbed to both engines, transmissions and generator
• Walker Airsep air filters on engines
• Sea Fire® automatic fire suppression system
• Dual Racor® 900 fuel filters w/ vacuum gauges for main engines and generator
• Cablemaster
• Dual Balmar Hi-Output alternators (190 and 60 amp) with external smart regulators

• Manship engine room moisture eliminators with biaxial variable hi-speed fans

• ZF Mathers Cruise Command (4-station) engine controls
• Teleflex hydraulic steering (2 stations)
• Raritan 20 gallon water heater
•  Johnson variable speed 24V DC fresh water pump w/ 5 gallon accumulator tank
• (2) Jabsco dockside pressure regulators
• (5) Rule bilge pumps @3,700 gallons per hour with Ultra high water alarm (2 station)
• Emergency bilge pump tied into raw water intake on main engine
• Centek fiberglass muffler
• Engine room intake and exhaust fans with moisture eliminators
• (4) aluminum fuel tanks with sight gauges for 1,400 gallon total capacity
• Fiberglass 140 gallon tank w/ macerator (black water)
• Fiberglass 140 gallon tank w/macerator (grey water)
• Fireboy Xintex CO detectors
• (2) 316L Stainless steel water tanks for 400 gallon total capacity

• Northern Lights® 12KW generator with sound shield (81 hours)
• Glendenning shore power retrieval system
• Magnum Energy 4000 watt inverter/charger

• 240 volt Charles Isolation Boost Transformer
• Charles 60 amp battery charger
• Batteries: Lifeline AGM 92) 12-volt wired in series for 24V DC engine starting, (2) 12-volt wired in series for 24V DC generator starting,

• Glendenning shore power retrieval system
• i2 Systems LED lighting throughout
• All exterior lighting is LED
• Manship Engine Room Moisture Eliminators with biaxial variable hi-speed fans
• CruiseAir reverse cycle AC/Heat units – remote mounted compressors equipped with their SMXHT control panels throughout

• Maxwell Vertical windlass w/ wildcat and gypsy
• Tides drip-less shaft seals
• Novurania 360DL Dinghy with 50 hp Honda outboard
• Steelhead ES1000 electric hydraulic davit system w/ power rotation
• Maxwell anchor remote control station with chain counter at pilothouse and flybridge
• Rocna 55 with 300′ 3/8 chain
• Freeman watertight deck hatch color matched to deck gelcoat for anchor locker
• Bow shore power inlet
• Custom canvas covers for windows

• LED Flybridge and Boat Deck Lighting

• Many custom stainless handrails
• Trident propane locker with (2) 20lb aluminum propane tanks

• Fresh and Saltwater wash downs
• Custom Sunbrella exterior seating cushions
• Cockpit shower
• Poly-Planar speakers in front of pilot house
